Sealed-Air Arches
Inflate the arch with the supplied pump, close the valve and disconnect the equipment. This creates a clean event setup without a continuously running blower. Available in selected sizes up to 8m.
Custom Inflatable Arches
£599.00 + VAT
In stock
SKU
IA
Create an unmissable entrance, start line or finish line with a fully custom-printed inflatable arch. Available from 4m to 15m wide, every arch can be designed around your colours, logos and event messaging, with expert help and a free 3D visual before production.
- ✓4m–15m Sizes & Bespoke Designs: Choose a standard, rectangular or curved profile, with custom sizes and shapes available for more distinctive event concepts.
- ✓Full-Colour Branding on Both Sides: Turn the complete arch into a high-impact display for your event identity, sponsors and campaign graphics.
- ✓Sealed-Air or Constant-Air Options: Select the inflation system and material best suited to your arch size, event environment and operating requirements.
- ✓FREE 3D Visual & Reusable Banner Options: Preview the finished design before ordering and add detachable printed panels when sponsor messaging needs to change.
Custom inflatable event arches
Own the entrance. Define the finish line.
Create a high-impact focal point for races, festivals, exhibitions and branded events with a custom inflatable arch designed around your identity.
4m–15mStandard external widths
2-SidedFull-colour custom branding
2 Air TypesSealed or constant-air
FREE3D design visual before production
Designed around your brand
More than an off-the-shelf arch with a logo added
Choose the size, profile, leg style, material and inflation system, then use the complete printable surface for brand colours, campaign graphics and sponsor messaging. Standard, rectangular and curved profiles are available, with bespoke shapes and sizes quoted on request.
- Standard straight legs or optional freestanding T-feet
- Detachable printed banners for changing sponsors
- Premium nylon and PVC material choices
- Artwork support and approval before manufacture
Choose your inflation system
Sealed-air or constant-air?
Both systems create a bold professional display. The best choice depends on the required size, material and how the arch will be operated at your event.
Constant-Air Arches
A fan or blower runs continuously from a 240V supply, making constant-air suitable across the full 4m–15m range and for larger or more complex structures.
Built for visibility
A natural landmark for events and race days
A custom inflatable race arch makes the route instantly recognisable while creating a prominent stage for organiser and sponsor branding. It also provides a strong visual backdrop for participant photography, video coverage and social media content.
Running eventsCyclingTriathlonsCharity eventsFestivalsProduct launchesExhibitions
See your arch before you order
Send us your event details, required size and branding. Our in-house team will create a free 3D visual and help you select the most suitable arch configuration.
| Show message if current option price is 0 | Make Selections |
|---|---|
| Show this message instead of "From: 0.00" | Based on Selections |
Everything required for your arch setup
Your package includes the correct inflation equipment for the air system selected, plus the essential storage and tethering components.
Custom Inflatable Arch
Manufactured in the selected size, material, shape and printed design.
Tethering Ropes
Connect to the arch D-rings to help anchor the structure correctly.
Ground Stakes
For tethering on suitable soft-ground event locations.
Pump or Blower
A pump for sealed-air models or a fan/blower for constant-air models.
Heavy-Duty Bag
A waterproof PVC carry and storage bag for transport between events.
Optional extras
Add spare inflation equipment, hard-surface ballast or event-specific accessories to complete your setup.
Additional 680W Pump
Additional Blowers
20kg Weight Plates
Ratchet Straps
Heavy-Duty Ground Stakes
PVC Tarpaulin Mat
Detachable Printed Banners
Need a ballast recommendation? Tell our team the arch size, air system and event surface so we can help identify a suitable tethering and weighting setup.
Inflatable arch specifications
Compare the available material and inflation combinations. Open each table to view weight, approximate dimensions and the availability of the optional larger-leg upgrade.
Important: Figures assume a straight-leg arch with the standard leg diameter, normally 10% of the external width. Heights, diameters, weights and packed sizes are guides; final production dimensions vary with material and inflation system. Tell our sales team before ordering if your venue requires an exact clearance or footprint.
600D Nylon — Constant-Air — Dye-Sublimation Print
| External width | Weight | Leg diameter | External height | Packed dimensions | 15% leg upgrade |
|---|---|---|---|---|---|
| 4m | 13kg | 40cm | 2.5m | 0.7m L × 0.5m D | Yes |
| 5m | 15kg | 50cm | 3m | 0.7m L × 0.5m D | Yes |
| 6m | 19kg | 60cm | 3m | 0.8m L × 0.6m D | Yes |
| 7m | 25kg | 80cm | 4m | 0.8m L × 0.6m D | Yes |
| 8m | 34kg | 90cm | 4m | 0.9m L × 0.7m D | Yes |
| 9m | 46kg | 1m | 4.5m | 0.9m L × 0.7m D | No |
| 10m | 55kg | 1.3m | 5m | 1m L × 0.8m D | No |
| 12m | 73kg | 1.6m | 6m | 1.1m L × 0.8m D | No |
| 15m | 90kg | 1.8m | 7m | 1.2m L × 0.9m D | No |
600D Nylon — Sealed-Air — Dye-Sublimation Print
| External width | Weight | Leg diameter | External height | Packed dimensions | 15% leg upgrade |
|---|---|---|---|---|---|
| 4m | 15kg | 40cm | 2.5m | 0.5m L × 0.4m D | Yes |
| 5m | 21kg | 50cm | 3m | 0.6m L × 0.4m D | Yes |
| 6m | 26kg | 60cm | 3m | 0.6m L × 0.5m D | Yes |
| 7m | 29kg | 80cm | 4m | 0.6m L × 0.5m D | Yes |
| 8m | 32kg | 90cm | 4m | 0.8m L × 0.6m D | Yes |
420D Nylon — Constant-Air — Digital Print
| External width | Weight | Leg diameter | External height | Packed dimensions | 15% leg upgrade |
|---|---|---|---|---|---|
| 4m | 11kg | 40cm | 2.5m | 0.7m L × 0.5m D | Yes |
| 5m | 12kg | 50cm | 3m | 0.7m L × 0.5m D | Yes |
| 6m | 15kg | 60cm | 3m | 0.8m L × 0.6m D | Yes |
| 7m | 19kg | 80cm | 4m | 0.8m L × 0.6m D | Yes |
| 8m | 22kg | 90cm | 4m | 0.9m L × 0.7m D | Yes |
| 9m | 31kg | 1m | 4.5m | 0.9m L × 0.7m D | No |
| 10m | 38kg | 1.3m | 5m | 1m L × 0.8m D | No |
| 12m | 56kg | 1.6m | 6m | 1.1m L × 0.8m D | No |
| 15m | 72kg | 1.8m | 7m | 1.2m L × 0.9m D | No |
0.45mm PVC Tarpaulin — Constant-Air — Digital Print
| External width | Weight | Leg diameter | External height | Packed dimensions | 15% leg upgrade |
|---|---|---|---|---|---|
| 4m | 23kg | 40cm | 2.5m | 0.5m L × 0.4m D | Yes |
| 5m | 25kg | 50cm | 3m | 0.7m L × 0.5m D | Yes |
| 6m | 31kg | 60cm | 3m | 0.7m L × 0.5m D | Yes |
| 7m | 36kg | 80cm | 4m | 0.8m L × 0.6m D | Yes |
| 8m | 43kg | 90cm | 4m | 0.8m L × 0.6m D | Yes |
| 9m | 58kg | 1m | 4.5m | 0.9m L × 0.7m D | No |
| 10m | 82kg | 1.3m | 5m | 0.9m L × 0.7m D | No |
| 12m | 104kg | 1.6m | 6m | 1m L × 0.8m D | No |
| 15m | 127kg | 1.8m | 7m | 1m L × 0.8m D | No |
0.6mm PVC Tarpaulin — Sealed-Air — Digital Print
| External width | Weight | Leg diameter | External height | Packed dimensions | 15% leg upgrade |
|---|---|---|---|---|---|
| 4m | 18kg | 40cm | 2.5m | 0.7m L × 0.5m D | Yes |
| 5m | 23kg | 50cm | 3m | 0.8m L × 0.6m D | Yes |
| 6m | 28kg | 60cm | 3m | 0.8m L × 0.6m D | Yes |
| 7m | 33kg | 80cm | 4m | 0.9m L × 0.7m D | Yes |
| 8m | 39kg | 90cm | 4m | 0.9m L × 0.7m D | Yes |
L = packed lengthD = packed diameterConstant-air requires continuous 240V powerSealed-air disconnects after inflation
Preparing your inflatable arch artwork
Use the template for your chosen arch size so logos, messages and sponsor graphics can be positioned accurately across the printed panels.
- Download the correct size template from the options shown.
- Use vector artwork where possible and prepare the file in Adobe Illustrator or another compatible vector program.
- Use separate templates for different designs, including different front and rear graphics or detachable banners.
- Submit your files for checking. Our design team will review the layout before production.
Standard arch templates
Select the required external width to download the relevant PDF artwork guide.
Need artwork support? Email enquiries@instantpromotion.co.uk or call 0117 963 1668. We can help prepare your design and provide a free 3D visual.
12–14Working-day standard lead time
Plan around your event date
Our standard production lead time for custom inflatable arches is 12–14 working days from final artwork approval. If your deadline is closer, contact the sales team before ordering so we can check whether priority production is available.
Lead time starts
after artwork sign-off
after artwork sign-off
Priority service
subject to capacity
subject to capacity
Fastest route
send artwork promptly
send artwork promptly
Setup and operating guides
Download the relevant instructions before your event and make sure every member of the setup team understands the inflation, positioning and tethering process.
General operating information covering preparation, inflation, tethering and pack-down.
Download PDFA clear illustrated sequence for sealed-air and constant-air arch installation.
Download PDFOperating guidance for the pump supplied with compatible sealed-air arches.
Download PDFSafe setup: Always tether the arch using the supplied D-rings and suitable anchoring or ballast for the event surface. Assess the site and weather conditions before and throughout use, maintain safe clearance from hazards and take the structure down if conditions become unsafe.
Build the right arch for your event
Start with the leg style and profile, then select the air system and material. Our team can recommend a combination based on the required width, event surface, operating time, finish and budget.
Maximum printable leg area

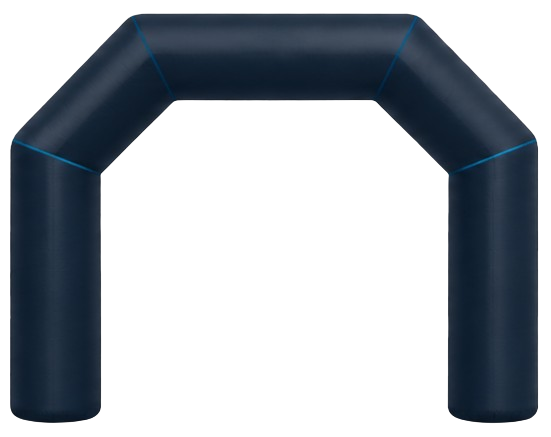

Straight-Leg Arches
Branding can continue to the bottom of each leg. Straight-leg arches must be tethered with suitable straps, stakes or ballast and are the more economical leg configuration.
Standard

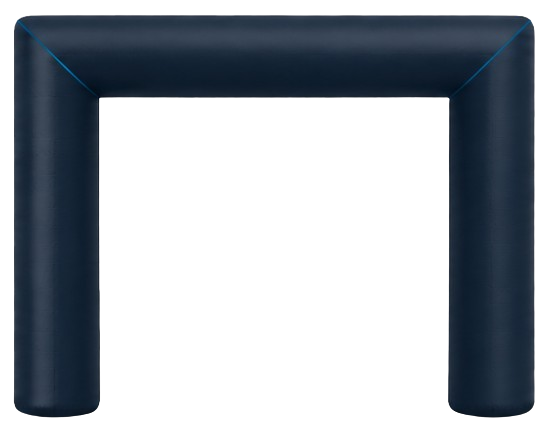

Rectangular

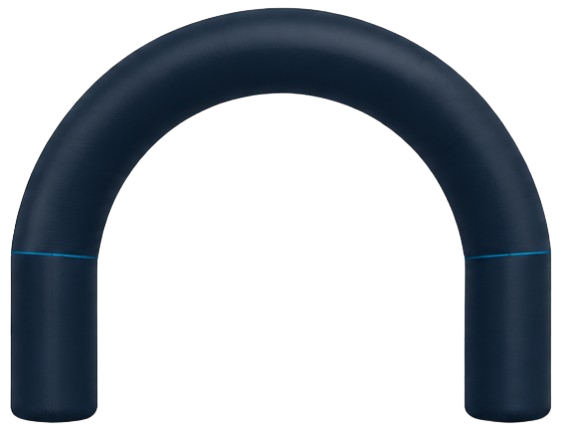

CurvedWider T-shaped base

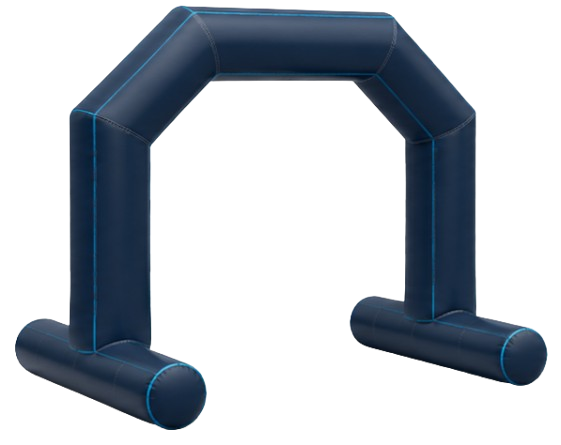

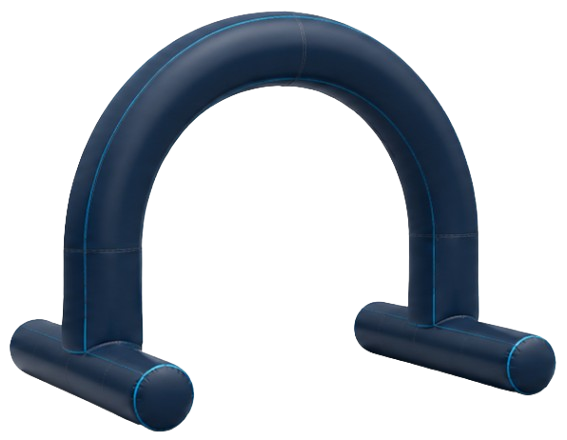

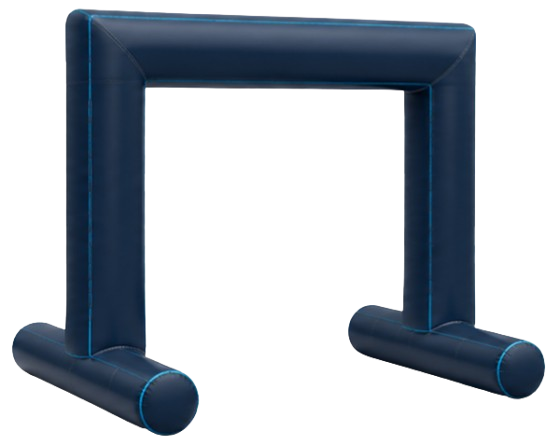

Freestanding T-Foot Arches
The extended base improves self-support in fair conditions and provides another printable surface. Correct tethering is still recommended for every outdoor setup.
Standard
Rectangular
CurvedCompare inflation systems
Your selected arch width and material determine which systems are available.
Sealed-Air
- Inflate with the supplied pump, close the valve and disconnect
- No continuously running blower during the event
- 600D models use an internal 0.3mm PVC bladder and pressure-release valve
- 0.6mm PVC models use a single-layer airtight construction
- Available in selected 4m–8m configurations
Constant-Air
- Uses a continuously operating fan or blower
- Requires access to a suitable 240V power supply
- Fan may be built in or external, depending on arch size
- Available in 420D nylon, 600D nylon and 0.45mm PVC
- Suitable across the full 4m–15m standard size range
Compare materials
Choose between lighter textile construction and heavier easy-clean PVC, with print method and compatible air system varying by material.
420D Nylon
Entry-level textileLightweight with a gloss digitally printed finish; a practical choice for occasional promotional use.
- Air system
- Constant-air only
- Digital print
- Sizes
- 4m–15m
600D Nylon
Premium textileHeavyweight material with a matt, photo-quality dye-sublimation print suited to regular event use.
- Air system
- Sealed or constant-air
- Dye sublimation
- Sizes
- 4m–15m constant; 4m–8m sealed
0.45mm PVC
Heavy-duty constant-airStrong, heavier vinyl construction with an easy-clean surface for demanding event environments.
- Air system
- Constant-air only
- Digital print
- Sizes
- 4m–15m
0.6mm PVC
Heavy-duty sealed-airThe strongest and heaviest option, using welded seams to create an airtight single-layer structure.
- Air system
- Sealed-air only
- Digital print
- Sizes
- 4m–8m
Not sure which combination to choose?
Tell us the required opening, event surface, operating time and branding brief. We will help specify the most suitable arch and provide a free 3D visual.
