  • 3x3m COMPACT Express-40 and Hex-50 frames
  • 3x3m Express-40 Frame and Compact Frame
  • 3x3m Hex-50 and Compact Hex-50 frames
  • Hex-50 anodised colour options
  • Express 40 sliding corner bracket with push pin
  • Express 40 leg adjustor bracket
  • Express 40 top corner bracket and truss bars
  • Hex-50 blue anodised peak pole brackets and truss bars
  • Hex-50 blue anodised leg
  • Hex-50 red anodised frame

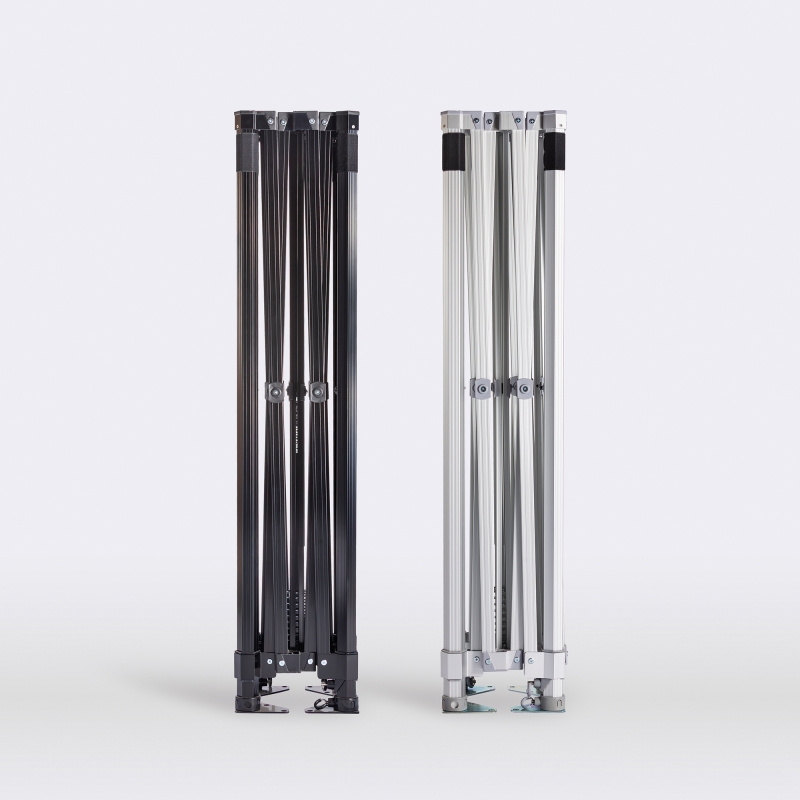

  • 3x3m Hex-50 black anodised frame and branded package
  • Hex-50 green anodised frame and racing green canopy.pdf

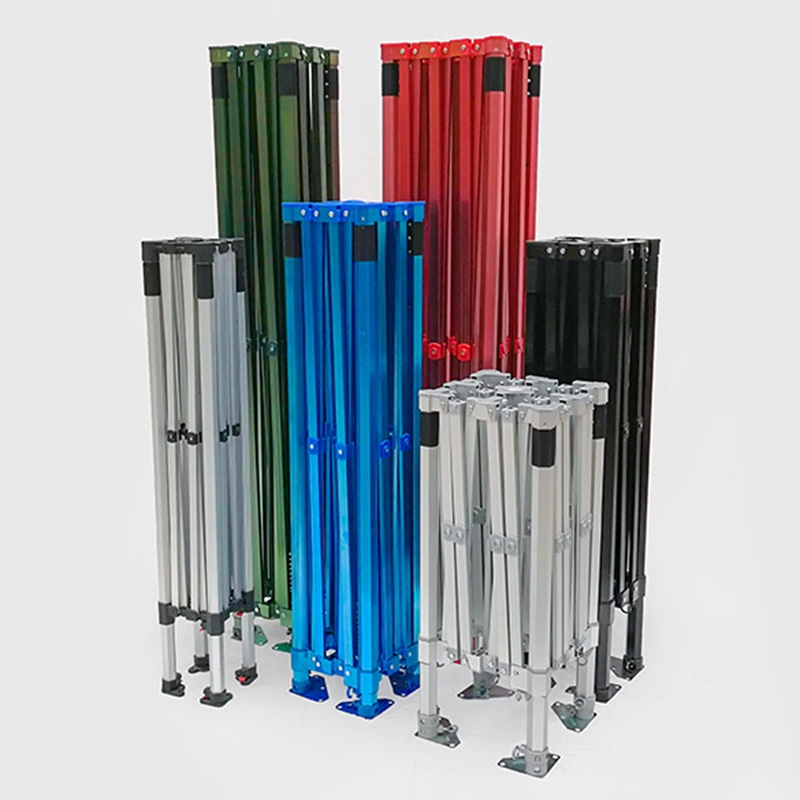

GZBO Ultra, Hex 50, Express 40 and Compact Frames

FRAMES ONLY

SKU: GZBO

Instant Promotion offers the widest range of gazebo frames across the industry. We have ten sizes in five range options and many are available in four anodised colours. The frames listed can be purchased to replace existing Instant Awnings products. All canopies and walls bought from us over the last 10 years will fit these frames (in the appropriate size).

  • 1-6 year frame warranty (selection dependent)
  • Choice of anodised colours (hex 50 only)
  • Guaranteed fit with historic Instant Awnings materials
  • Just buy the frame, not the whole package
  • Ultra and Compact specialist frames

Be the first to review this product

£0.00 + VAT

Order

* Required Fields

Make Selections + VAT

PLEASE BE AWARE WE CANNOT GUARANTEE OUR FRAME WILL FIT YOUR CANOPY AND SIDEWALLS IF THEY WEREN’T BOUGHT FROM INSTANT PROMOTION / INSTANT AWNINGS. FROM COMPANY TO COMPANY SMALL DIFFERENCES SUCH AS PEAK POLE HEIGHT AND CANOPY VALANCE WIDTH CAN MAKE A BIG DIFFERENCE TO THE OVERALL FIT. WE WOULD ALWAYS ENCOURAGE YOU TO BUY YOUR CANOPIES AND WALLS FROM US TO BE 100% CONFIDENT OF A PERFECT FIT.

The same is true of spare parts. On many occasions customers who have not bought from Instant Promotion historically will contact us for spares as their previous supplier no longer stocks what they need or isn’t willing to help them with after sales or honour a warranty. We will always try and help any customer but please be aware we cannot guarantee a perfect fit if the complete gazebo package hasn’t been bought from us.

The GZBO Hex 50 is the strongest, heaviest duty commercial grade frame in the UK! Our team have spent years designing and refining our flagship GZBO Hex 50 model, and it is now one of the smoothest, easiest to use frames on the market whilst retaining its position as the best value for money package. Our GZBO Hex 50 frame is unique to us - no other UK company has access to this frame design, and that's because we design and build the GZBO Hex 50 ourselves. As well as available in standard silver, the GZBO Hex 50 can also be purchased in four unique, eye catching anodised colours, perfect when you need to stand out from the crowd. This is the model of choice for clients including Sky TV, National Trust, St John Ambulance and British Cycling who put it to the test throughout the UK and Europe, almost every week of the year!

All frames can be purchased via the Buy Now link on this page and additional canopies, walls, weights and carry bags can be bought from our Accessories section here. All online orders will be sent out within 24 hours on a 1-2 working day delivery. Due to weight and size, the Ultra 3x6m and Hex 50 4x4m, 4x6m and 4x8m frames are all couriered by pallet to ensure safe transit. This can add an additional day to delivery times depending on how quickly the pallet company can collect your order.

Additional frame information is available on the Specification tab, however if you have any questions please call our Sales Team on 0117 963 1668.

You can find additional frame information on the various product and Specification tabs within this page, however if you have any questions please call our Sales Team on 0117 963 1668.

Our product development team designed the GZBO Hex 50 frame with a view to creating the strongest, user friendly Instant Marquee on the market. Starting from the ground up we have ensured that the frame sits on large oversized metal feet which each have three machine drilled holes for securing on soft ground. The upper legs measure 50mm in width and are a hexagonal shape, which has been proven under strength tests to withstand more pressure than a traditional box section leg. All sliding metal brackets include internal nylon casing to ensure smooth movement during set up and take down, avoiding any unnecessary metal on metal friction. All height adjusting mechanisms are encased inside moulded brackets with metal pull pins for safe and easy usage. The sturdy peak poles that support the canopy when fully erect are tensioned with a heavy duty spring coil and finished with a curved cap to ensure minimal wear and tear on the roof material. The Hex 50 range is available in every size except 1.5x1.5m.

The Express 40 is our entry level aluminium frame design, aimed at people who are likely to use their Instant Awning one or two times a week, in fair weather conditions. The frame is a lighter weight construction, but it remains a very strong and easy to handle aluminium Instant Marquee solution that is a fantastic value for money option. The frame features hexagonal shaped 40mm aluminium legs and nylon / plastic moulded brackets with push pin technology. Available in five sizes from 1.5x1.5m to 3x6m.

We developed the Ultra Hex 50mm frame for users who demand the ultimate in strength and durability. Our Hex 50mm frame has led the market for a number of years but we wanted to build on that success and add an even stronger frame to our range - and in 2017 the Ultra Hex 50mm was born! Ideal for customers who know they will be using their GZBO in open areas with exposure to strong wind and rain, the Ultra Hex 50 is 25% heavier and 25% stronger. If ultimate strength and durability outweighs weight and ease of transport the Ultra Hex 50 is perfect. Available in silver 3x3m, 3x4.5m and 3x6m.

Our Compact gazebo is available as a 3x3m in both the Express 40 and Hex 50 ranges. The Compact frame features a three-part telescopic leg system that helps reduce the collapsed frame height from 160cm to just 103cm! Perfect for when space is at a premium. The Compact Gazebo is ideal for any customer who has space limitations when it comes to transporting your event and exhibition assets. The Hex 50 Compact Instant Awning is the strongest triple telescopic pop-up marquee on the market today.

Closed Frame Dimensions (cm)
FRAME RANGE1.5x1.5m2x2m2.5x2.5m3x2m3x3m3x4.5m3x6m4x4m4x6m4x8m
Express 40 Compact    103x31x31
Hex 50 Compact    103x42x42
Express 40144x25x25144x25x25  156x24x24156x31x24156x42x24
Hex 50 145x31x31145x30x30145x43x33158x31x31158x45x31158x59x31205x32x32205x43x32205x57x32
Hex 50 Ultra    158x31x31158x45x31158x59x31

Frame Warranty
FRAME RANGE1.5x1.5m2x2m2.5x2.5m3x2m3x3m3x4.5m3x6m4x4m4x6m4x8m
Express 40 Compact    1 year
Hex 50 Compact    2 years
Express 401 year1 year  1 year1 year1 year
Hex 50 5 years5 years5 years5 years15 years5 years5 years5 years5 years
Hex 50 Ultra    6 years6 years6 years

Aluminium Profile (mm)
FRAME RANGE1.5x1.5m2x2m2.5x2.5m3x2m3x3m3x4.5m3x6m4x4m4x6m4x8m
Express 40 Compact    1.4mm
Hex 50 Compact    2mm
Express 401.4mm1.4mm  1.4mm1.4mm1.4mm
Hex 50 2mm2mm2mm2mm2mm2mm2mm2mm2mm
Hex 50 Ultra    2.5mm2.5mm2.5mm

Frame Pricing (Inc VAT price in brackets)
FRAME RANGE1.5x1.5m2x2m2.5x2.5m3x2m3x3m3x4.5m3x6m4x4m4x6m4x8m
Express 40 Compact    £210+VAT
(£252)

Hex 50 Compact    £265+VAT
(£318)

Express 40£135+VAT
(£162)
£150+VAT
(£180)
  £175+VAT
(£210)
£200+VAT
(£240)
£240+VAT
(£280)

Hex 50 £195+VAT
(£234)
£225+VAT
(£270)
£245+VAT
(£294)
£255+VAT
(£306)
£300+VAT
(£360)
£395+VAT
(£474)
£375+VAT
(£450)
£420+VAT
(£504)
£525+VAT
(£630)
Hex 50 Ultra    £300+VAT
(£360)
£375+VAT
(£450)
£495+VAT
(£594)
