Dial in the right brightness
Adjust the output in moments—bright enough for detailed work and product displays, or lower for a more relaxed atmosphere.
Illumipeak™ Retrofit Lighting Kit (Hex 50)
£166.00 + VAT
In stock
SKU
IRF50

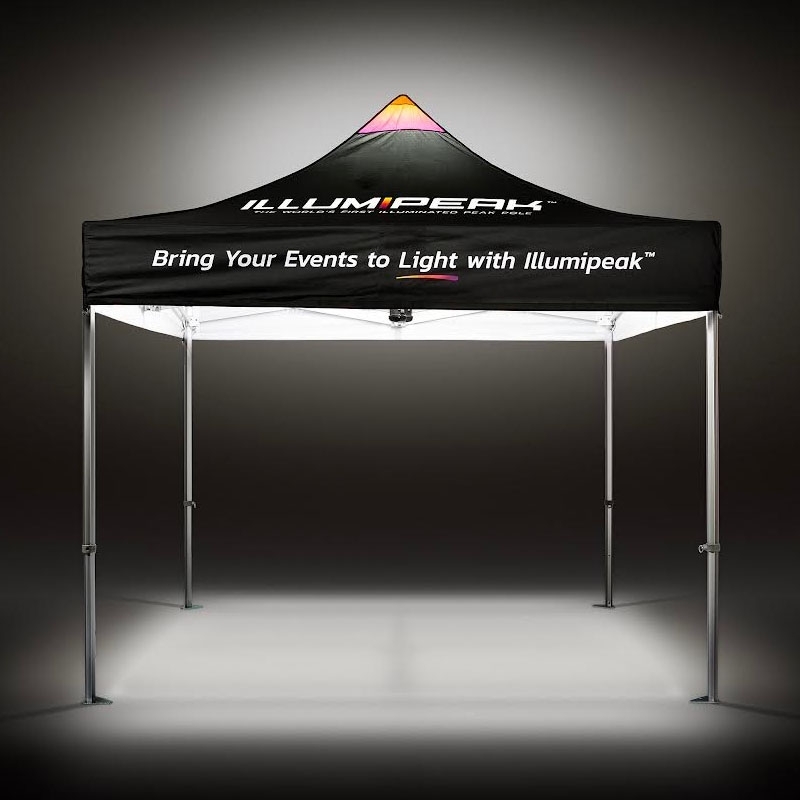

Upgrade a compatible GZBO Hex 50 frame with Illumipeak™, our patent-pending integrated gazebo lighting system. The illuminated peak pole replaces the existing pole to deliver powerful, dimmable 5000K light from the highest point of your gazebo—without hanging lamps or a separate lighting stand.
- ✓Lighting Built Into the Frame: A purpose-designed illuminated peak pole becomes a permanent part of your gazebo after one initial installation.
- ✓Bright 360° Illumination: Projects 5000K white light vertically and horizontally for broad, even coverage beneath the canopy.
- ✓Brightness Under Your Control: Use the integrated dimmer dial to move from powerful working light to a softer event atmosphere.
- ✓Mains or Optional Battery Power: Run from the included mains adapter or add a 10Ah or 15Ah battery pack for 10–15+ hours of cordless lighting.
Lighting, re-engineered
The Ultimate Lighting Solution.
Illumipeak™ replaces the standard peak pole in a compatible GZBO Hex 50 frame, putting powerful, controllable LED illumination at the highest point of the structure. No hanging lamp. No lighting stand. No clutter competing with your display.
PATENT PENDING360° LIGHTFULLY DIMMABLE36W / 5000K
One intelligent system
Professional light without the usual event-lighting compromises
Designed specifically around the gazebo structure, Illumipeak™ gives exhibitors a cleaner setup, more useful light and far greater control after dark.
Integrated by design
The clear polycarbonate LED peak pole replaces the original pole and remains part of the frame after the initial retrofit.
Broad 360° coverage
Light projects vertically and horizontally from the centre peak to illuminate the working space and help the gazebo remain visible.
Instant dimming
Move from bright, practical task lighting to a softer ambience using the control housing’s integrated dimmer dial.
Power it your way
Connect to mains power with the included adapter or add a compact lithium battery for a completely cordless setup.
From daylight to after dark
Keep your space working when natural light disappears
Illumipeak™ creates a bright, professional and welcoming environment for evening markets, trade shows, outdoor events and motorsport pit lanes. Because the source sits at the peak, useful floor space stays clear and the light travels across the structure from above.
✓
One-time retrofit—then deploy it as part of your normal gazebo frame.
✓
Clean integrated appearance with no freestanding lighting hardware.
✓
Indoor/outdoor event use with mains or optional portable power.
Power, control and flexibility
Technology designed around real event setups
Link two peaks, use one source
The Dual Pack includes a daisy-chain link cable, allowing two Illumipeak™ units to run from one included mains adapter or one optional battery.
Go completely cordless
Add a 10Ah or 15Ah battery pack for 10+ or 15+ hours of portable lighting where access to sockets is limited.
Choose the correct kit
Single- and dual-peak lighting, engineered to match the frame
Single-peak GZBO Hex 50 frames use one Illumipeak™ unit. Multi-peak frames should use the Dual Pack to provide more consistent coverage across their longer footprint.
With the link cable supplied in the Dual Pack, both peak lights operate from one power source for a neater, simpler setup.
Single KitFor 3 × 3m and 4 × 4m Hex 50 frames.
Dual PackRecommended for 3 × 4.5m, 3 × 6m, 4 × 6m and 4 × 8m Hex 50 frames.
Compatibility: This retrofit kit is currently designed for compatible GZBO Hex 50 frames in the sizes listed above. Confirm your frame range and size before ordering. Optional batteries are sold separately.
Illumipeak™ technical specification
Purpose-designed LED peak-pole lighting for compatible GZBO Hex 50 gazebo frames.
Light colour5000K white
Consumption36W
Input24V DC
ControlFully dimmable
| Peak-pole material | Clear polycarbonate |
|---|---|
| Lighting direction | 360° vertical and horizontal illumination |
| Boxed product weight | 3.175kg |
| Event use | Indoor and outdoor |
| Power options | Included mains adapter or optional 10Ah / 15Ah battery pack |
| Compatible frame range | GZBO Hex 50 |
| Compatible sizes | 3 × 3m, 3 × 4.5m, 3 × 6m, 4 × 4m, 4 × 6m and 4 × 8m |
| Warranty | 1 year |
| Patent status | Patent pending |
Kit selection: Use a Single Kit for 3 × 3m and 4 × 4m frames. A Dual Pack is recommended for 3 × 4.5m, 3 × 6m, 4 × 6m and 4 × 8m frames to achieve more even coverage.
Illumipeak™ installation and setup guides
Download the relevant step-by-step PDF before fitting or operating your lighting system.
Retrofit Kit Installation GuideInstructions for fitting the Illumipeak™ peak pole, control housing, cabling and power components.Download installation guide →Battery & Dual-Peak GuideInstructions for connecting an optional battery pack and linking two lights in a Dual Pack setup.Download battery and link-cable guide →
