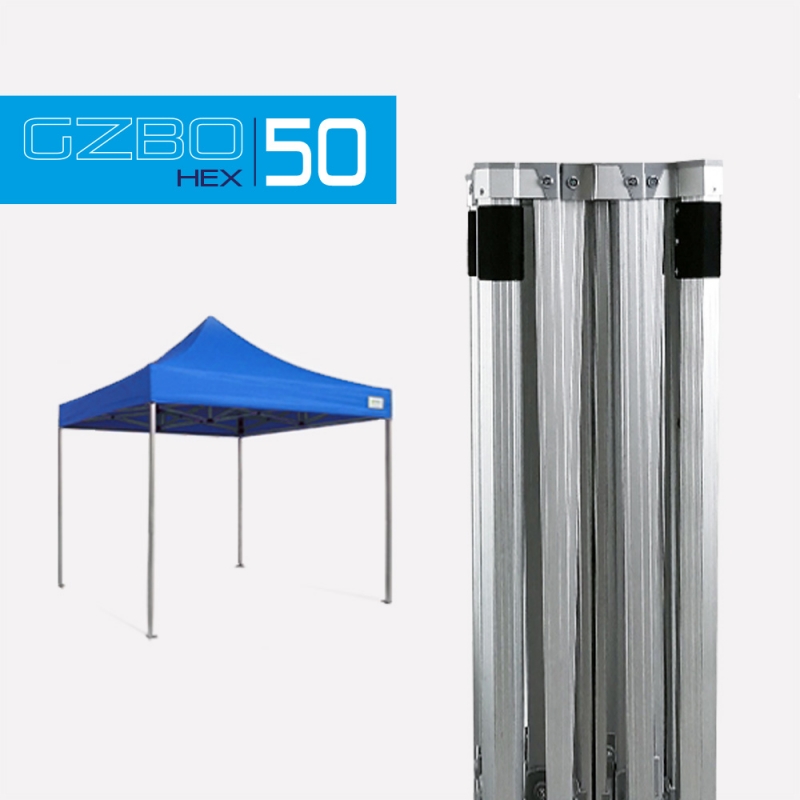

GZBO Hex 50

SKU: gzbo-hex-50

The UK's number one heavy duty gazebo! Designed and refined in-house, the GZBO Hex 50 is trusted by National Trust, St John Ambulance, Screwfix, Sky TV and many more major brands.

  • 5 Stunning anodised frame colours
  • 5 Year Frame Warranty
  • Sizes from 2.5m x 2.5m to 4m x 8m
  • Plain and Two-Tone Colours
  • Large 50mm hex shaped legs
  • 100% Waterproof & Flameproof
  • Side wall carry bag included
  • Tie down straps and ropes



Be the first to review this product

£230.00 + VAT

Order in a few simple steps...

* Required Fields

+ VAT

GZBO Hex 50 • 5 Year Warranty FREE mock-up


Please outline your requirements in terms of size, colour, upgrades, quantity and design and we'll aim to get back to you within a few hours.

We offer a FREE mock up service to show you exactly how your branded GZBO Hex 50 • 5 Year Warranty could look so upload your logos and we'll create a mock up as quickly as possible!

Your details...


Whereas low resolution files will suffice for your visual, we will require artwork in vector format for production. Download our Artwork Requirements here for more information

The GZBO Hex 50 is the strongest, heaviest duty commercial grade gazebo in the UK! Our team have spent years designing and refining our flagship GZBO Hex 50 model, and it is now one of the smoothest, easiest to use frames on the market whilst retaining its position as the best value for money package. Available in sizes from 3m x 2m to a massive 4m x 8m, we stock over 15 colours for you to choose from!

To see how to correctly setup & take-down a GZBO Hex 50 Instant Awning click here (the YouTube clip will open in a new window)

Our GZBO Hex 50 frame is unique to us - no other UK company has access to this frame design, and that's because we design and build the GZBO Hex 50 ourselves. Available in plain stock colours and with full custom print, the GZBO Hex 50 is the model chosen by clients including Sky TV, National Trust, St John Ambulance, British Cycling and many more organisations who truly put it to the test at event throughout the UK and Europe, almost every week of the year!

Our product development team designed the GZBO Hex 50 frame three years ago, with a view to creating the strongest and easiest to use Instant Marquee on the market. Starting from the ground up we have ensured that the frame sits on large oversized metal feet which each have three machine drilled holes for securing on soft ground. The upper legs measure 50mm across and are a hexagonal shape, which has been proven under strength tests to withstand more pressure than a traditional box section leg.

Both the brackets for adjusting the height of the frame, and the sliding leg brackets, have metal pull pin mechanisms for safe and easy adjustments. The sturdy peak poles that support the canopy when fully erect are finished with a curved cap to ensure minimal wear and tear on the roof material. Every canopy also has re-enforced contact points where it rests on the peak pole(s).



Pro Expo Standard Package

  • High Quality Aluminium Frame - 5 Year Warranty
  • 600D Polyester Canopy (100% WR & FR)
  • Roller Wheel Frame Bag (excl. 4m x 4m, 4m x 6m & 4m x 8m)
  • All 4m x 4m, 4m x 6m & 4m x 8m packages come with a protective dustcover for the frame
  • Tie Down Straps & Stakes
  • Instruction Manual
  • Care and Repair Guide

Optional Extras

  • Side Walls - sold individually, so you only have to buy what you need!
  • 13kg Weight Plates
  • 20kg Weight Plates
  • Ground Bar Kit
  • Ratchet Straps
  • Custom Printing

Frame

  • Aluminium frame with aluminium brackets
  • 50mm hex shaped coated aluminum legs
  • Super strength 35mm x 18mm truss bars
  • Oversize metal feet with three drilled holes
  • Smooth and safe pull pin sliders
  • Market leading 5 year warranty
  • Every spare part stocked

Canopy Material

  • 600 Denier Polyester with PVC lining
  • 100% Flameproof and 100% Waterproof
  • Heat Sealed Seams
  • Reenforced stress points where peaks poles meet canopy
  • Reenforced areas where truss bar brackets touch canopy
  • Large 2" Velcro along the underside of canopy to attach walls

Side Wall Material

  • 600 Denier Polyester with PVC lining
  • 100% Flameproof and 100% Waterproof
  • Multiple velcro tabs to strap around frame legs
  • Large 2" velcro to connect side wall to canopy
  • Zip connectors to join side walls together
  • Side walls can attach independently - use as many or as few as you need
  • Multiple eyelets along the bottom of every wall for pegging into the ground

Accessories

  • Frame roller bag with hard base and large wheels
  • 9" metal pegs
  • Tie down ropes

3m x 3m Frame Measurements

Height to underside of Valance
Position 1     1.90m
Position 2     1.98m
Position 3     2.06m
Position 4     2.14m
Position 5     2.22m

Highest External Point
Position 1     3.24m
Position 2     3.32m
Position 3     3.40m
Position 4     3.48m
Position 5     3.56m

Side Wall Heights
Full Height Wall     2.20m
Half Height Wall    90cm

Valance Depth       35cm

Frame Packed Dimensions
155cm x 27cm x 27cm



3m x 4.5m Frame Measurements

Height to underside of Valance
Position 1     1.90m
Position 2     1.98m
Position 3     2.06m
Position 4     2.14m
Position 5     2.22m

Highest External Point
Position 1     3.24m
Position 2     3.32m
Position 3     3.40m
Position 4     3.48m
Position 5     3.56m

Side Wall Heights
Full Height Wall     2.20m
Half Height Wall    90cm

Valance Depth       35cm

Frame Packed Dimensions
155cm x 27cm x 35cm



3m x 6m Frame Measurements

Height to underside of Valance
Position 1     1.90m
Position 2     1.98m
Position 3     2.06m
Position 4     2.14m
Position 5     2.22m

Highest External Point
Position 1     3.24m
Position 2     3.32m
Position 3     3.40m
Position 4     3.48m
Position 5     3.56m

Side Wall Heights
Full Height Wall     2.20m
Half Height Wall    90cm

Valance Depth       35cm

Frame Packed Dimensions
155cm x 30cm x 50cm



4m x 8m Frame Measurements

Height to underside of Valance
Position 1     1.90m
Position 2     1.98m
Position 3     2.06m
Position 4     2.14m
Position 5     2.22m

Highest External Point
Position 1     3.24m
Position 2     3.32m
Position 3     3.40m
Position 4     3.48m
Position 5     3.56m

Side Wall Heights
Full Height Wall     2.25m
Half Height Wall    90cm

Valance Depth       45cm



Have you got 77 seconds you can spare?
This short clip helps explain exactly why the Pro 50 is Number 1 when it comes to heavy duty, long lasting commercial grade gazebo frames.

One Person Setup...
There's also a quick demonstration of a one person setup, which can be done with ease up to a maximum size of 3m x 3m. A 3m x 4.5m and 3m x 6m setup is possible with one person, however the setup time is likely to be 3-5 times longer than with an extra pair of hands!





Anodised Aluminium Pro Expo Frames!
We are the very first company in both the UK and USA to launch a range of anodised aluminium Pro 50 frames! Both the metallic blue and metallic black frames are absolutely stunning, and initially they are available in 3m x 3m, 3m x 4.5m and 3m x 6m sizes. More colours will be added to the range later this year!

Commercial grade frame components
