X1 Weight Securing Plate

Double click on above image to view full picture

Zoom Out
Zoom In
  • X1 Weight Securing Plate 8mm galvanised steel
  • X1 Weight Securing Plate Carabiner and 30mm webbing strap
  • X1 Weight Securing Plate no weights
  • X1 Weight Securing Plate welded rod holds weights in place
  • X1 Weight Securing Plate with 80kg of weight

X1 Weight Securing Plate

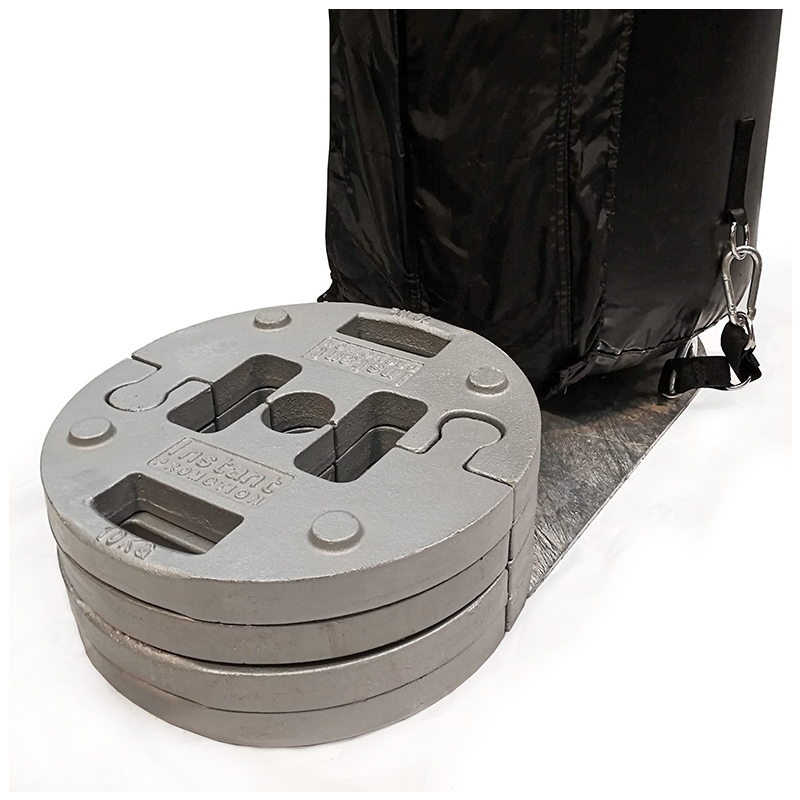

Our customised Weight Securing Plates are the ideal solution for safely securing your X1 on hard and soft ground when purchased with our 20kg weight plates. The galvanised steel plate comes complete with carabiners and webbing straps for tethering to your dome. Each Securing Plate sold individually. See the Specification tab for additional information.

  • Three sizes available
  • Plate, carabiners and straps included
  • Galvanised plate prevents rusting
  • Customised X1 design
  • Perfect shape for 20kg weight plates

Be the first to review this product

£89.00 +VAT

Build Your Order

* Required Fields


Following end-user feedback Instant Promotion has developed a tethering solution perfect for the Spider Dome X1. PVC zip pockets in the base of the Expo and Pro legs create a simple weight location. However, the X1 with thinner legs has required a solution of its own to ensure any size of dome across the range can be safely secured to the ground.

Each product is made from 8mm galvanised steel. A 40mm weight securing pin ensures up to four 20kg interlocking weight pates can be stacked safely (sold separately, BUY). Two 12mm steel rods welded on either side of the plate provide handles for securing to the dome.

Each plate is sold separately and comes complete with two carabiner clips and two 30mm webbings straps with stainless steel D rings. For additional information please see the Specification tab.

MetalGalvanised mild steelGalvanised mild steelGalvanised mild steel
Locating weight pin40mm diameter40mm diameter40mm diameter
Plate size350mm x 680mm350mm x 740mm420mm x 820mm
Plate thickness8mm8mm8mm
Suggested weight solution per plate1-4 20kg weight plates1-4 20kg weight plates1-4 20kg weight plates
Carabiners clipsIncluded, x2 per plate. Stainless steelIncluded, x2 per plate. Stainless steelIncluded, x2 per plate. Stainless steel
Webbings strapsIncluded, x2 per plate. Stainless steel D ringsIncluded, x2 per plate. Stainless steel D ringsIncluded, x2 per plate. Stainless steel D rings
Suggested X1 size3x3m, 4x4m5x5m, 6x6m7x7m, 8x8m
